Fast Combination Weighing
Multiple hopper combinations support faster weighing of irregular products and pieces.
Warranty & ownership support ↗
Final configuration is confirmed against your product and pack.
Weighing units
Multihead Weighing Machine
Multihead Combination WeigherML-MHW-01Combination weighing for irregular granules and piece products.
- Weight range
- 10 g–5 kg*
- Output
- Up to 120 doses/min*
- Accuracy
- ±0.5%*
Product review · Trial validation · Installation & training
The process. Together.
Illustrative matched configuration. Final equipment and connections are selected for your product and pack.
Illustrative system
01 / SupplyFeed the complete line.
The bucket elevator feeds the multihead weigher on its guarded support platform.
Where it fits
The connected process.
An illustrative matched system from product supply through finished-pack transfer. The selected feeder, dosing unit, pack format and downstream equipment follow your product and technical offer.
- 01Product supplyShown in this system
- 02Combination weighingShown in this system
- 03Form / fill / sealShown in this system
- 04Pouch transferShown in this system
Read the process explanation
- Feed the complete line. The bucket elevator feeds the multihead weigher on its guarded support platform.
- Combine the pack weight. Selected weigh hoppers release a dose into the aligned pouch-forming tube.
- Index. Fill. Seal. Servo-driven film transport pauses for the cross-seal and cut cycle.
- Move the finished pouch. The pouch settles onto the conveyor and travels to the next packing step.
Illustrative mechanism. Dimensions and cycle timing are not equipment specifications.
Your product, your pack
Made for the application.
- Snacks & Namkeen
- Nuts, Dry Fruits & Makhana
- Confectionery & Candy
- Cereals & Bakery Pieces
- Pet Food & Irregular Food Pieces
- Selected Frozen Products*
Applications marked * need individual product review.
Low Giveaway Near Target
Selected hopper combinations help control overfill near the programmed target.
Gentler Fragile/Frozen Handling
Application-matched distribution and hoppers help reduce product damage.
The details that matter
Know your machine.
Standalone module specifications
| Model | ML-MHW-01 |
|---|---|
| Machine Type | Multihead combination weigher |
| Operation / Automation | Automatic high-speed weighing module |
| Operating Principle | Combination load-cell weighing |
| Drive / Motion System | Servo-motor drive |
| Weight Range | 10 g–5 kg*; product, head and bucket configuration dependent |
| Output | Up to 120 doses/min* |
| Weighing Accuracy | ±0.5%* |
| Controls / HMI | PLC with 7-inch touchscreen HMI |
| Body / Frame Construction | SS304 / SS316 available as configured |
| Product-Contact Material | SS304 / SS316 available as required by product |
| Voltage / Electrical Supply | 220/440V |
| Head / Bucket Configuration | Up to 14 heads; head count and bucket volume selected for product |
| Integration Compatibility | VFFS, platforms, feeders and inspection systems as configured |
| Utilities / Site Requirement | Electrical/site requirements confirmed in final offer |
| Warranty / Origin | 1 Year; Made in India |

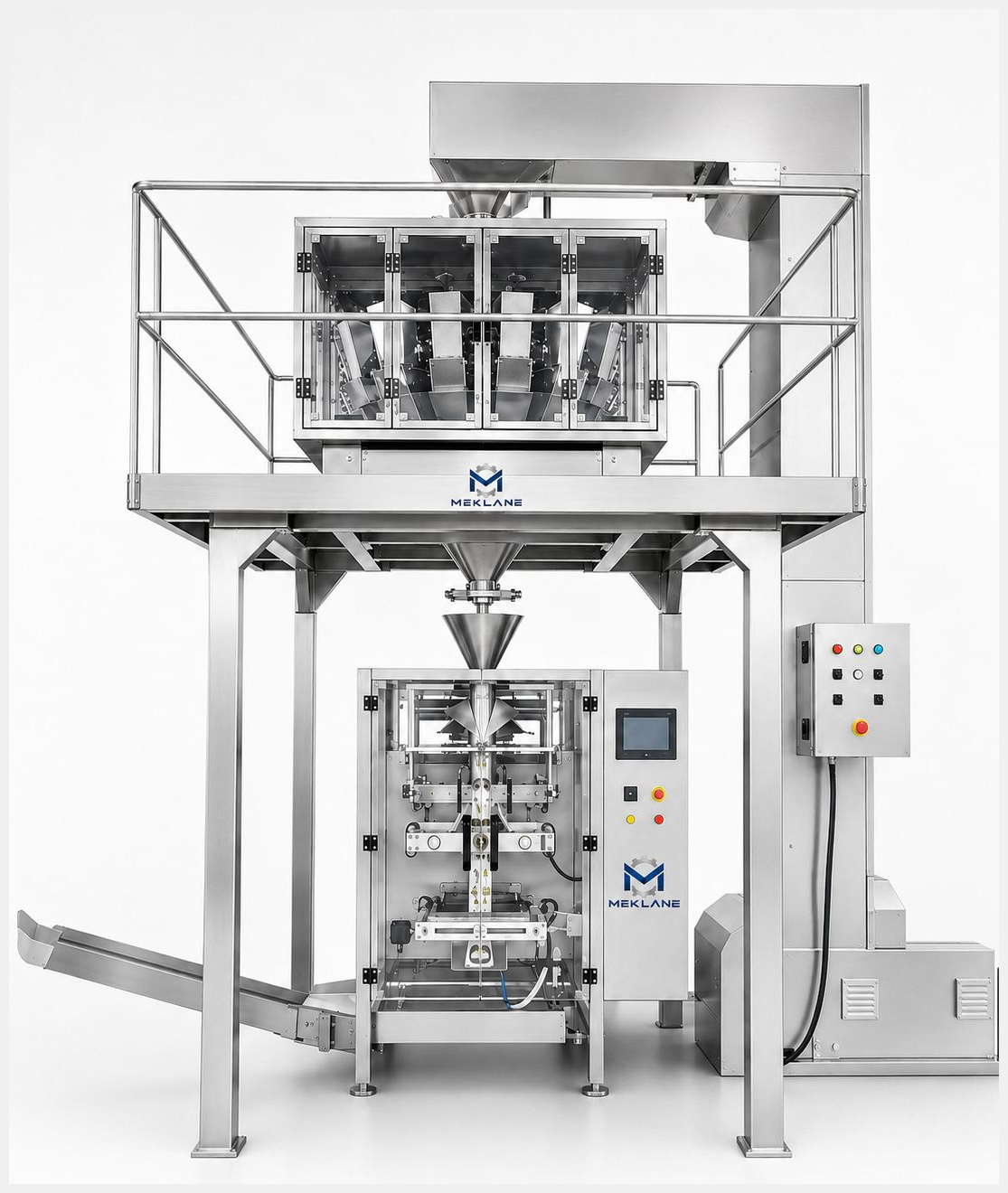

Complete pouch-packing configuration — when vffs is included
| Matched System Range | 5 g–5 kg* on corresponding integrated platform |
|---|---|
| Control Interfaces | Separate weigher and bagger HMIs |
| Film Compatibility | Multilayer compound, aluminium and laminated films* |
| Changeover / Registration | Quick pouch-size changeover; Datalogic print registration |
| Automation / Drives | Mitsubishi PLC; Bonvario pouch-pull/rewind drives |
| Frozen-Food Option | Peas, sweet corn, fries and mixed vegetables; matched hopper/distribution setup |
| Pneumatics | SMC components, where applicable |
| System Contact Parts | SS304 product-contact parts, where applicable |
*Performance depends on product characteristics, target quantity, machine configuration and operating conditions. Standalone dosing rates and complete-system pouch rates apply to their respective configurations. Final values and utilities are confirmed in the approved technical offer.
